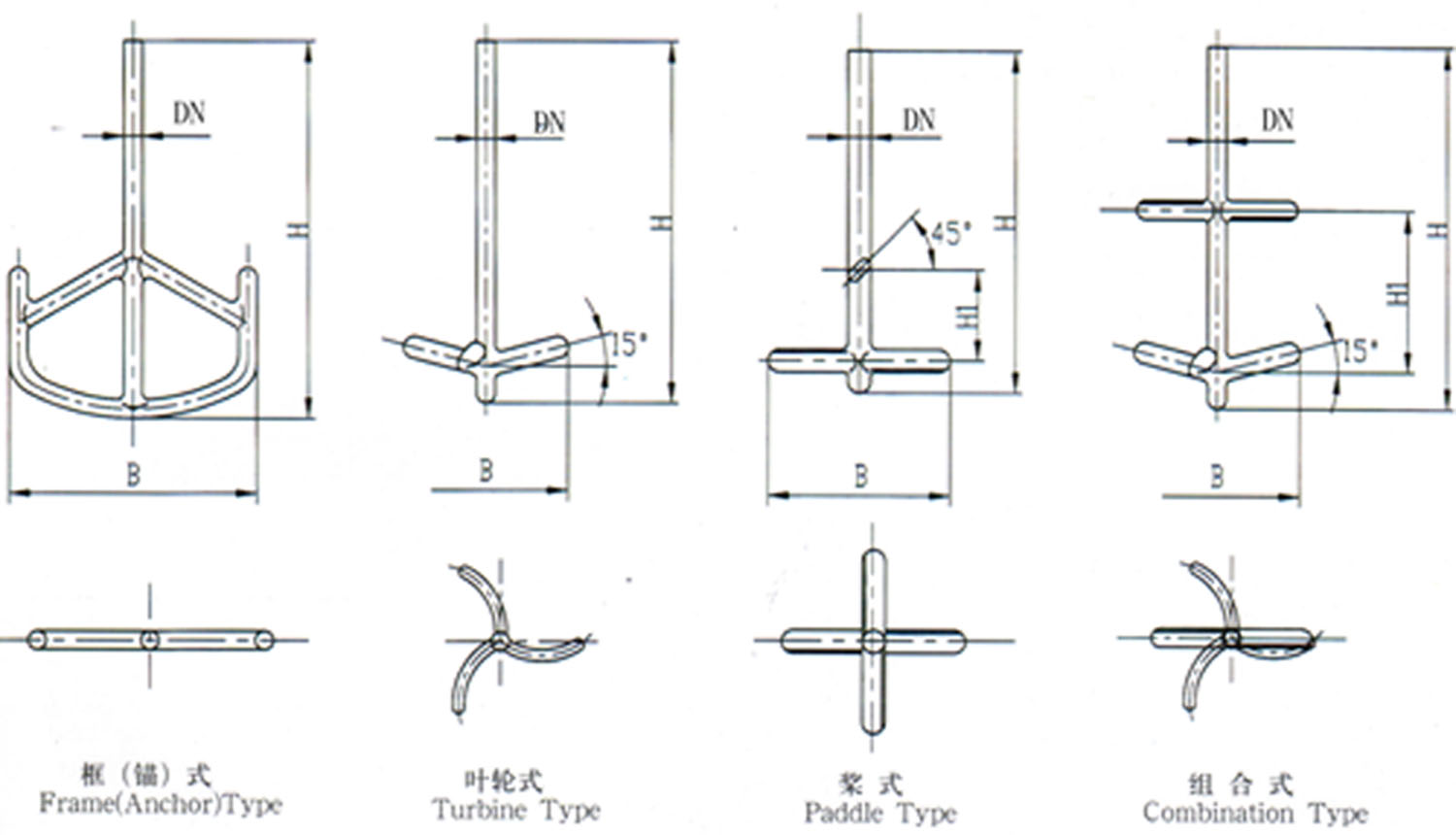

TANK VOLUME | FRAME(ANCHOR)TYPE | TURBIN TYPE | PADDLE TYPE | COMBINATION TYPE | |||||||||||
| DN | B | H | DN | B | H | DN | B | H1 | H | DN | B | H1 | H | ||
| K50 | 40 | 420 | 930 | 40 | 300 | 900 | 40 | 300 | / | 900 | 40 | 300 | / | 900 | |
| K100 | 40 | 520 | 1050 | 40 | 300 | 1050 | 40 | 300 | / | 1050 | 40 | 300 | / | 1050 | |
| K200 | 50 | 620 | 1290 | 50 | 400 | 1250 | 50 | 400 | 150 | 1250 | 50 | 400 | / | 1250 | |
| K300 | 65 | 720 | 1440 | 65 | 500 | 1400 | 65 | 400 | 200 | 1400 | 65 | 500 | / | 1400 | |
| K500 | 65 | 810 | 1670 | 65 | 500 | 1590 | 65 | 450 | 220 | 1590 | 65 | 500 | 400 | 1590 | |
| K1000 | 80 | 1080 | 1910 | 80 | 700 | 1880 | 80 | 680 | 300 | 1880 | 80 | 700 | 600 | 1880 | |
| K1500 | 80 | 1180 | 2140 | 80 | 700 | 2140 | 80 | 680 | 340 | 2140 | 80 | 700 | 600 | 2140 | |
| K2000 | 80 | 1180 | 2480 | 80 | 700 | 2480 | 80 | 680 | 340 | 2480 | 80 | 700 | 600 | 2480 | |
| K3000 | 95 | 1440 | 2500 | 95 | 800 | 2500 | 95 | 720 | 360 | 2500 | 95 | 800 | 700 | 2500 | |
| K4000 | 95 | 1440 | 3000 | 95 | 800 | 3000 | 95 | 720 | 360 | 3000 | 95 | 850 | 700 | 3000 | |
| K5000 | 95 | 1580 | 3000 | 95 | 850 | 3000 | 95 | 720 | 360 | 3000 | 95 | 850 | 800 | 3000 | |
| K6300 | 95 | 1580 | 3680 | 95 | 850 | 3600 | 95 | 720 | 360 | 3600 | 95 | 850 | 800 | 3600 | |
| TANK VOLUME | TURBIN TYPE | PADDLE TYPE | COMBINATION TYPE | |||||||||
| DN | B | H | DN | B | H1 | H | DN | B | H1 | H | ||
| F3000 | 95 | 800 | 2500 | 95 | 720 | 360 | 2500 | 95 | 800 | 700 | 2500 | |
| F4000 | 95 | 800 | 3000 | 95 | 720 | 360 | 3000 | 95 | 800 | 700 | 3000 | |
| F5000 | 95 | 850 | 3000 | 95 | 720 | 360 | 3000 | 95 | 850 | 800 | 3000 | |
| F6300 | 95 | 850 | 3600 | 95 | 720 | 360 | 3600 | 95 | 850 | 800 | 3600 | |
| F8000 | 110 | 1100 | 3930 | 110 | 880 | 440 | 3930 | 110 | 1100 | 1000 | 3930 | |
| F10000 | 110 | 1200 | 4130 | 110 | 980 | 490 | 4130 | 110 | 1200 | 1100 | 4130 | |
| F12500 | 110 | 1200 | 4650 | 110 | 980 | 490 | 4650 | 110 | 1200 | 1100 | 4650 | |
| F16000 | 130 | 1200 | 4980 | 130 | 980 | 490 | 4980 | 130 | 1200 | 1200 | 4980 | |
| F20000 | 140 | 1300 | 5470 | 140 | 1080 | 540 | 5470 | 140 | 1300 | 1200 | 5470 | |
Today we introduce the types of enamel stirrers commonly used in enamel reactors. Let's take a look!
1. Inclined blade paddle type agitator can be made with an inclination angle of 30°, 45°, or 60°, and have axial and radial splits. The flow pattern is more complex than that of the straight blade paddle type, and the discharge performance is also better than that of the straight blade type. The higher the paddle, the better the overall effect, so the frequency of use is higher than that of the straight blade paddle.
2. Anchor type stirrer This type of stirrer is a variant of the straight-blade paddle type. The rotating surface of the bottom of the paddle should be close to the elliptical surface of the container, which plays the role of a scraper. Most of them operate at low speed and can operate in transitional flow or laminar flow. area operation.
3. Frame type agitator:This type of mixer is a slow speed mixer. Often operated under laminar flow conditions. Producing horizontal annular flow, if it is a folded blade or an angle steel blade, it can increase the vortex near the blade. You can add vertical blades and beams to the paddle as needed to change the mixing range.
4. Propelled axial flow agitator :The three-blade propelled type is a typical axial flow agitator with low shear performance: the use of baffles or guide tubes will result in stronger axial circulation and improved discharge performance because of its strong circulation ability. , low power consumption and large capacity can show advantages in the mixing process. It is widely used in processes such as heat transfer, reaction, suspension and dissolution of low-viscosity liquids with small solid-liquid ratios.
5. Types of enamel agitator commonly used in enamel reactors: anchor agitator. This type of stirrer is a slow-speed stirrer and is very suitable for mixing, heat transfer or reaction of medium and high viscosity liquids.
The above introduces the types of enamel stirrers commonly used in glass-lined reactors. In fact, we can see that there are many types of enamel stirrers commonly used in enamel reactors.
